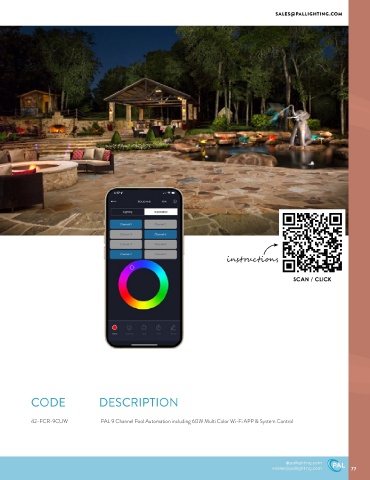

AUTOMATION POOL AUTOMATION
POOL TOUCH 9
CONTROL SYSTEM
1.5HP / 120V AC (16A) PER ZONE
POWER RATING
3HP / 240V AC (21A) PER ZONE
60W / 12V DC
instructions
ZONES 8 x AC + 1 x DC
UL1563 ELECTRIC SPAS, SCAN / CLICK
CERTIFICATION EQUIPMENT ASSEMBLIES AND
ASSOCIATED EQUIPMENT
15” 5”
380mm 130mm
11” 280mm
CODE DESCRIPTION
42-PCR-9CUW PAL 9 Channel Pool Automation including 60W Multi Color Wi-Fi APP & System Control
