P. 75
COMING SOON
PALLIGHTING.COM SALES@PALLIGHTING.COM
AUTOMATION POOL AUTOMATION
POOL TOUCH 5S
CONTROL SYSTEM
1.5HP / 120V AC (16A) PER ZONE
POWER RATING instructions
3HP / 240V AC (21A) PER ZONE
65W / 24V DC SCAN / CLICK
ZONES 4 x AC + 1 x DC
UL1563 ELECTRIC SPAS,
CERTIFICATION EQUIPMENT ASSEMBLIES AND
ASSOCIATED EQUIPMENT
11½” 4¾”
293mm 119mm

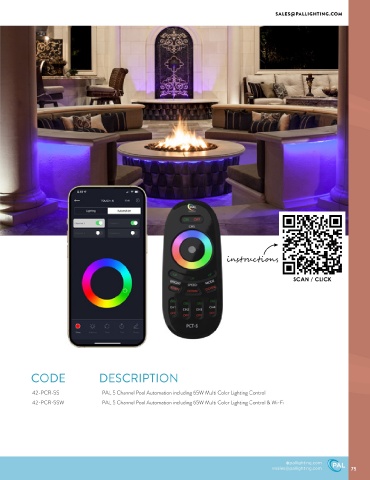

CODE DESCRIPTION
6⅘” 173mm 42-PCR-5S PAL 5 Channel Pool Automation including 65W Multi Color Lighting Control
42-PCR-5SW PAL 5 Channel Pool Automation including 65W Multi Color Lighting Control & Wi-Fi
pallighting.com
74 sales@pallighting.com 75
