WATERBLADE LIT KIT
PALLIGHTING.COM SALES@PALLIGHTING.COM
WATER FEATURES
WATER FEATURES ® LIT KIT

152mm R
MULTI-COLOR LIGHT 152mm ⅗” 15.5mm MULTI-COLOR TRANSFORME ⅗” 15.5mm
6”
4”
6”
2½”
62.5mm
100mm
POWER 4.5W / FT (24V DC) CONTROL TYPE SWITCH MODE
RATING 14.4W / M (24V DC) POWER RATING 16/65W / 24V DC
77mm
COLOR 3” 77mm MULTI-COLOR 3” CERTIFICATION UL676 POOL & SPA LIGHTING
4½” 116mm
MAX LENGTH 5’ / 1.5M WATERBLADE SPECIFICATIONS
MAX LENGTH 5’ / 1.5M

instructions
2½” 6” 4” 6”
62.5mm 152mm 100mm 152mm
SCAN / CLICK
1¼” 32.4mm 1¼” 32.4mm
77mm 1” 3” 77mm 1”
3” 25.1mm 25.1mm CODE DESCRIPTION
116mm
4½”

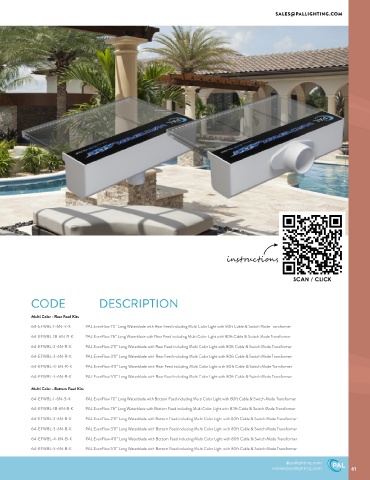

Multi Color - Rear Feed Kits
64-EFWBL-1-6N-R-K PAL EvenFlow 1’0” Long Waterblade with Rear Feed including Multi Color Light with 80ft Cable & Switch Mode Transformer
64-EFWBL-1B-6N-R-K PAL EvenFlow 1’6” Long Waterblade with Rear Feed including Multi Color Light with 80ft Cable & Switch Mode Transformer
7” 7” 4⅖” 4⅖” 64-EFWBL-2-6N-R-K PAL EvenFlow 2’0” Long Waterblade with Rear Feed including Multi Color Light with 80ft Cable & Switch Mode Transformer
176mm 176mm 111mm 111mm
64-EFWBL-3-6N-R-K PAL EvenFlow 3’0” Long Waterblade with Rear Feed including Multi Color Light with 80ft Cable & Switch Mode Transformer
64-EFWBL-4-6N-R-K PAL EvenFlow 4’0” Long Waterblade with Rear Feed including Multi Color Light with 80ft Cable & Switch Mode Transformer
64-EFWBL-5-6N-R-K PAL EvenFlow 5’0” Long Waterblade with Rear Feed including Multi Color Light with 80ft Cable & Switch Mode Transformer

Multi Color - Bottom Feed Kits
64-EFWBL-1-6N-B-K PAL EvenFlow 1’0” Long Waterblade with Bottom Feed including Multi Color Light with 80ft Cable & Switch Mode Transformer
64-EFWBL-1B-6N-B-K PAL EvenFlow 1’6” Long Waterblade with Bottom Feed including Multi Color Light with 80ft Cable & Switch Mode Transformer
64-EFWBL-2-6N-B-K PAL EvenFlow 2’0” Long Waterblade with Bottom Feed including Multi Color Light with 80ft Cable & Switch Mode Transformer
64-EFWBL-3-6N-B-K PAL EvenFlow 3’0” Long Waterblade with Bottom Feed including Multi Color Light with 80ft Cable & Switch Mode Transformer
64-EFWBL-4-6N-B-K PAL EvenFlow 4’0” Long Waterblade with Bottom Feed including Multi Color Light with 80ft Cable & Switch Mode Transformer
64-EFWBL-5-6N-B-K PAL EvenFlow 5’0” Long Waterblade with Bottom Feed including Multi Color Light with 80ft Cable & Switch Mode Transformer
