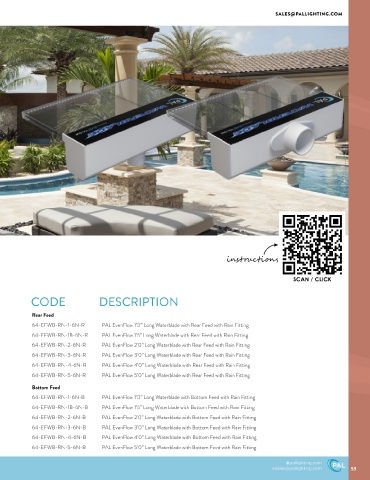

Page 59 - PAL Catalog

WATERBLADE RAIN
PALLIGHTING.COM SALES@PALLIGHTING.COM
WATER FEATURES
WATER FEATURES ® RAIN

instructions

SCAN / CLICK

2½” 6” 4” 6” CODE DESCRIPTION
62.5mm 156.3mm ⅗” 15.5mm 100mm 156.3mm ⅗” 15.5mm
Rear Feed
64-EFWB-RN-1-6N-R PAL EvenFlow 1’0” Long Waterblade with Rear Feed with Rain Fitting
3” 77mm 3” 77mm 64-EFWB-RN-1B-6N-R PAL EvenFlow 1’6” Long Waterblade with Rear Feed with Rain Fitting
4½” 116mm 64-EFWB-RN-2-6N-R PAL EvenFlow 2’0” Long Waterblade with Rear Feed with Rain Fitting
64-EFWB-RN-3-6N-R PAL EvenFlow 3’0” Long Waterblade with Rear Feed with Rain Fitting
64-EFWB-RN-4-6N-R PAL EvenFlow 4’0” Long Waterblade with Rear Feed with Rain Fitting

64-EFWB-RN-5-6N-R PAL EvenFlow 5’0” Long Waterblade with Rear Feed with Rain Fitting
Bottom Feed

6”
2½” SPECIFICATIONS 4” 6” 64-EFWB-RN-1-6N-B PAL EvenFlow 1’0” Long Waterblade with Bottom Feed with Rain Fitting
62.5mm 156.3mm 100mm 156.3mm
64-EFWB-RN-1B-6N-B PAL EvenFlow 1’6” Long Waterblade with Bottom Feed with Rain Fitting
MAX LENGTH 5’ / 1.5M
1¼” 32.4mm 1¼” 32.4mm 64-EFWB-RN-2-6N-B PAL EvenFlow 2’0” Long Waterblade with Bottom Feed with Rain Fitting
77mm 1” 3” 77mm 1” 64-EFWB-RN-3-6N-B PAL EvenFlow 3’0” Long Waterblade with Bottom Feed with Rain Fitting
3” 25.1mm 25.1mm
116mm 64-EFWB-RN-4-6N-B PAL EvenFlow 4’0” Long Waterblade with Bottom Feed with Rain Fitting
4½” 64-EFWB-RN-5-6N-B PAL EvenFlow 5’0” Long Waterblade with Bottom Feed with Rain Fitting
