P. 88
PALLIGHTING.COM SALES@PALLIGHTING.COM

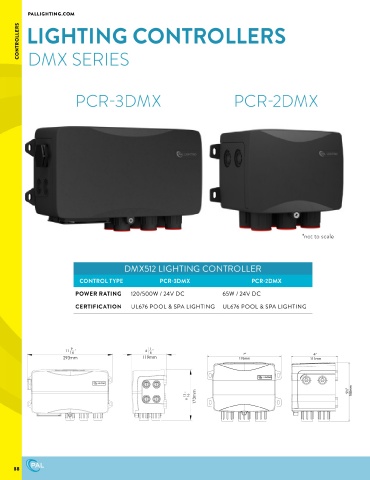

CONTROLLERS LIGHTING CONTROLLERS
DMX SERIES
PCR-3DMX PCR-2DMX
*not to scale
DMX512 LIGHTING CONTROLLER
CONTROL TYPE PCR-3DMX PCR-2DMX
POWER RATING 120/500W / 24V DC 65W / 24V DC
CERTIFICATION UL676 POOL & SPA LIGHTING UL676 POOL & SPA LIGHTING
instructions
9
9 "
11 16 " 4 11 " 7” 7” 11 16 4 11 "
16
16
4”
4”
293mm 119mm 176mm 176mm 111mm 293mm 111mm 119mm SCAN / CLICK
CODE DESCRIPTION
173mm
6 13 " 16 173mm DMX - 2 Zone 13 " 6 16 PAL 65W Multi Color Two Zone DMX Transformer 24VDC (No Remote Included)
64-PCR-2DMX-65
64-PCR-3DMX-120 PAL 120W Multi Color Two Zone DMX Transformer 24VDC (No Remote Included)
64-PCR-3DMX-500 PAL 500W Multi Color Two Zone DMX Transformer 24VDC (No Remote Included)
DMX - 8 Zone
64-PCR-3DMX-500-8Z PAL 500W Multi Color Eight Zone DMX Transformer 24VDC (No Remote Included)
pallighting.com
