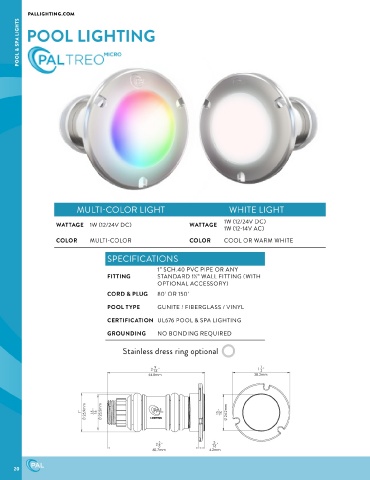

POOL & SPA LIGHTS PAL TREO MICRO POOL LIGHTING

MULTI-COLOR LIGHT WHITE LIGHT

WATTAGE 1W (12/24V DC) WATTAGE 1W (12/24V DC)
1W (12-14V AC)
COLOR MULTI-COLOR COLOR COOL OR WARM WHITE

SPECIFICATIONS

1” SCH.40 PVC PIPE OR ANY
FITTING STANDARD 1½” WALL FITTING (WITH
OPTIONAL ACCESSORY)
CORD & PLUG 80’ OR 150’ instructions
POOL TYPE GUNITE / FIBERGLASS / VINYL
SCAN / CLICK
CERTIFICATION UL676 POOL & SPA LIGHTING CODE DESCRIPTION

GROUNDING NO BONDING REQUIRED Multi Color
64-EGMIC-80 PAL Treo Micro Multi Color Nicheless Pool & Spa Light with 80ft Cable & Plug
Stainless dress ring optional 64-EGMIC-150 PAL Treo Micro Multi Color Nicheless Pool & Spa Light with 150ft Cable & Plug

64-EGMIC-01 PAL Treo Micro Multi Color Nicheless Pool & Spa Light Only (No Cable & Plug)
1
9
2 16 " 1 "
2
64.8mm 38.2mm Cool White
64-EGMIC-CW-80 PAL Treo Micro Cool White Nicheless Pool & Spa Light with 80ft Cable & Plug
64-EGMIC-CW-150 PAL Treo Micro Cool White Nicheless Pool & Spa Light with 150ft Cable & Plug
25.9mm 23.5mm 64-EGMIC-CW-01 PAL Treo Micro Cool White Nicheless Pool & Spa Light Only (No Cable & Plug)
1" 15 " 16 15 " 16 24.2mm
Warm White
64-EGMIC-WW-80 PAL Treo Micro Warm White Pool & Spa Light with 80ft Cable & Plug
64-EGMIC-WW-150 PAL Treo Micro Warm White Pool & Spa Light with 150ft Cable & Plug
3
3
2 " 16 "
8
60.7mm 4.2mm 64-EGMIC-WW-01 PAL Treo Micro Warm White Pool & Spa Light Only (No Cable & Plug)
pallighting.com
20 sales@pallighting.com 21
